Architecture

We designed and developed OmniEdge based upon the following objectives:

• Simple enough to use for both users and network administrators
• Based on the Zero-trust security model
• Users can establish a strictly secure network through authentication services such as Okta, Azure AD, etc.
• Use peer-to-peer communication instead of relaying nodes to increase network speed and reduce single-point failure risks

Overview

OmniEdge v2.x is built entirely in Rust for memory safety, performance, and cross-platform compatibility. The core VPN transport is powered by OmniNervous, a WireGuard-based protocol implementation that provides:

• Modern cryptographic primitives (Curve25519, ChaCha20-Poly1305, BLAKE2s)
• Noise protocol framework for secure key exchange
• NAT traversal with STUN/TURN support
• Low-latency peer-to-peer connections

Architecture Diagram

┌─────────────────────────────────────────────────────────────────┐
│                    OmniEdge Application                         │
│  ┌───────────────────────────────────────────────────────────┐  │
│  │                    Plugin Layer (WASM)                     │  │
│  │   ┌─────────┐  ┌─────────┐  ┌─────────┐  ┌─────────┐      │  │
│  │   │  Event  │  │  Auth   │  │ Policy  │  │   QoS   │ ...  │  │
│  │   │ Plugin  │  │ Plugin  │  │ Plugin  │  │ Plugin  │      │  │
│  │   └────┬────┘  └────┬────┘  └────┬────┘  └────┬────┘      │  │
│  │        │            │            │            │            │  │
│  │   ┌────┴────────────┴────────────┴────────────┴────┐      │  │
│  │   │              WASM Runtime (wasmtime)            │      │  │
│  │   └─────────────────────────────────────────────────┘      │  │
│  └───────────────────────────────────────────────────────────┘  │
│                                                                  │
│  ════════════════════ PLUGIN-FREE BOUNDARY ════════════════════ │
│                                                                  │
│  ┌───────────────────────────────────────────────────────────┐  │
│  │              OmniNervous VPN Transport (No Plugins)        │  │
│  │                  WireGuard-based Protocol                   │  │
│  └───────────────────────────────────────────────────────────┘  │
└─────────────────────────────────────────────────────────────────┘

Security Note: Plugins run only in the application layer. The core VPN transport (OmniNervous) remains plugin-free for maximum security and performance.

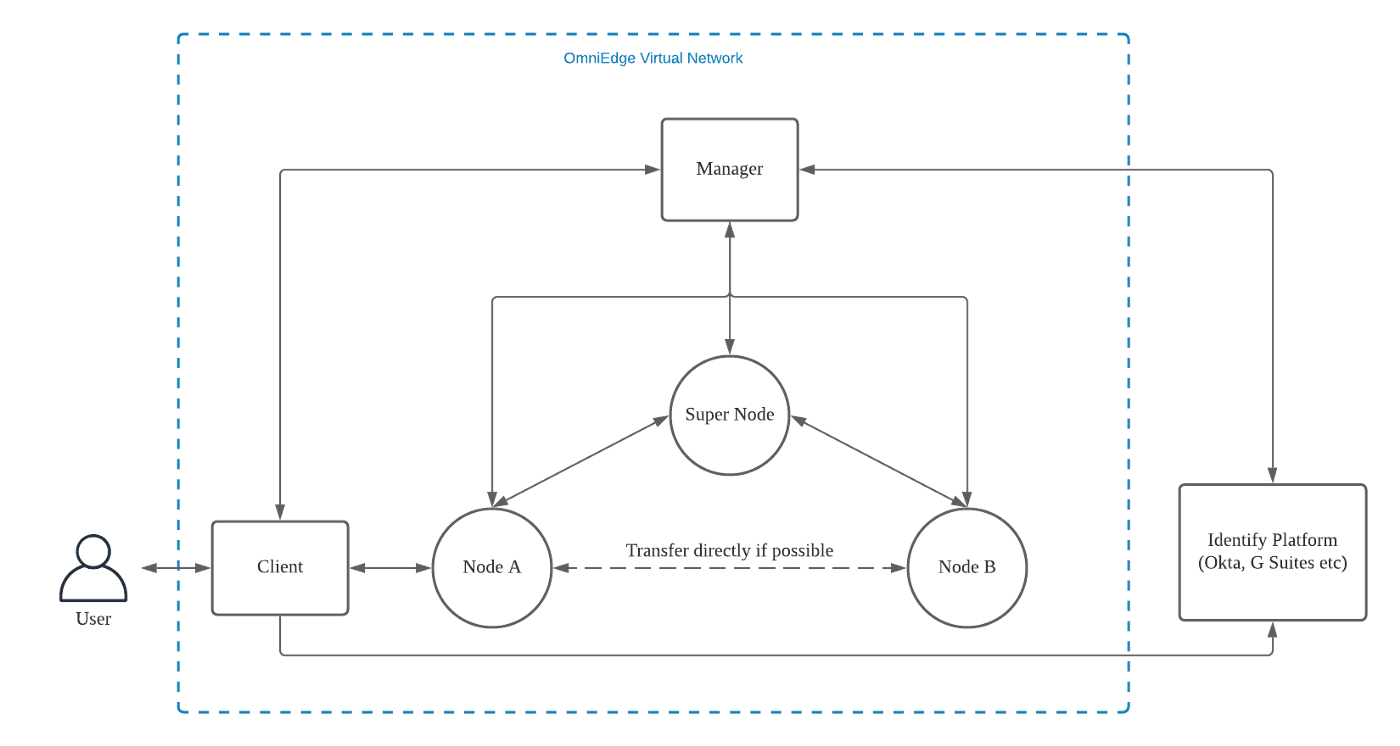

Core Components

Super Node

Coordinates communication between nodes within the virtual network:

• Facilitates NAT traversal and hole punching
• Establishes direct peer-to-peer connections when possible
• Relays traffic when direct connection is not possible (symmetric NAT, restrictive firewalls)
• Supports STUN/TURN protocols for connection establishment

OmniNervous Transport

The VPN transport layer built on WireGuard protocol:

• Encryption: ChaCha20-Poly1305 authenticated encryption
• Key Exchange: Noise_IK handshake with Curve25519
• Perfect Forward Secrecy: Session keys rotate automatically
• Roaming: Seamless connection migration across networks
• Keep-alive: Maintains connections through NAT

Node (Edge)

An entity within the virtual network that acts as a proxy for devices:

• Maintains virtual network interface (TUN/TAP)
• Manages encryption keys and peer public keys
• Routes TCP and UDP traffic over the VPN tunnel
• Provides local DNS resolution for network peers
• Supports multiple simultaneous network connections

Manager (Backend)

The orchestrator of the virtual network:

• Manages network configuration, device registration, and public keys
• Authenticates nodes and distributes network topology
• Coordinates network changes (join, leave, peer updates)
• Maintains device lifecycle and session management
• Integrates with identity providers (Okta, Azure AD, SAML)
• Enforces access control lists (ACLs) and network policies

Client (CLI / Desktop / Mobile)

User-facing applications to access the virtual network:

• CLI: Command-line interface for servers, containers, and automation
• Desktop: Native applications (Windows, macOS, Linux) with system tray integration
• Mobile: iOS and Android applications

Features:

• User authentication and session management
• Network selection and connection control
• Peer discovery and status monitoring
• Plugin management (Desktop and CLI)

Plugin System (v2.2.0+)

OmniEdge supports extensibility through WebAssembly plugins:

• 7 Plugin Types: Event hooks, authentication, network policy, QoS, data triage, PdM reporting, compliance
• Sandbox Isolation: Plugins run in WASM sandboxes with memory limits
• Hot Reload: Load/unload plugins without VPN restart
• Cross-Platform: Same plugin binary works on Windows, macOS, Linux

See Plugin System for detailed documentation.

Security Model

Platform Support

If you have more questions, feel free to discuss.
